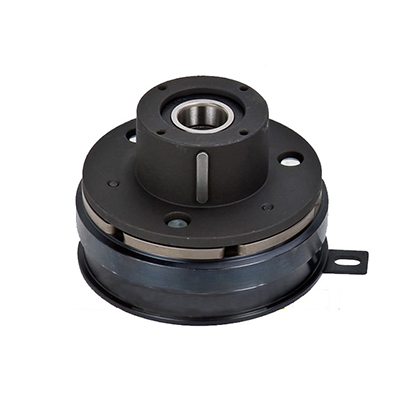

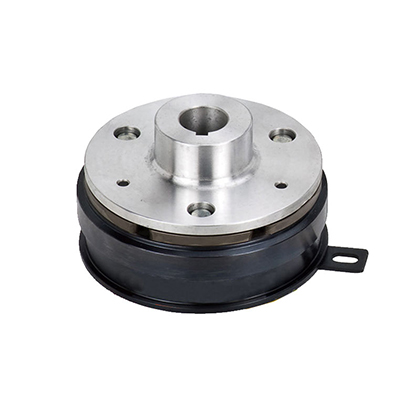

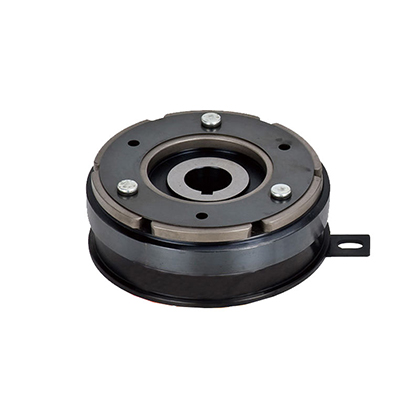

DLD2 series is a dry single-chip electromagnetic clutch without slip ring, which works when energized. The coil does not rotate, and it has a friction plate. It has compact structure, large transmission torque, quick response and no no no-load loss.
DLD2-Series data
| Size | DLD2-0.6 | DLD2-1.2 | DLD2-2.5 | DLD2-5 | DLD2-10 | DLD2-16 |
| Rated torque(N*M) | 6 | 12 | 25 | 50 | 100 | 160 |
| Excitation power 20℃(W) | 13 | 16 | 20 | 32 | 40 | 45 |
| Connection time T1(ms) | 55 | 75 | 120 | 140 | 230 | 250 |
| Disconnection time T2 (ms) | 15 | 25 | 35 | 45 | 60 | 90 |
| Normal clearance δ(mm) | 0.3 | 0.3 | 0.4 | 0.5 | 0.5 | 0.6 |
| Allowed speed n (rpm) | 3600 | 3600 | 3000 | 2500 | 2500 | 2500 |
| Excitation voltage DC (V) | 24V | |||||
Remark:
- normal clearance δ must be met when brake was fixed, if acutal clearance is over Max. clearance δmax, it must be adjusted to normal clearance δ;
- different voltage can be ordered.
| Size | dH7 | b | h | D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | D9 | V1 | V2 | V3 |
| DLD2-0.6 | 15 | 5 | 17.3 | 80 | 72 | 35 | 50 | 68 | 4-4.3 | 26 | 38 | 12 | 3-Φ4.1 | 3-Φ8.5 | 3-Φ7 |
| DLD2-1.2 | 20 | 6 | 22.8 | 105 | 95 | 42 | 66 | 90 | 4-5.5 | 35 | 45 | 15 | 3-Φ4.1 | 3-Φ9 | 3-Φ7 |
| DLD2-2.5 | 25 | 8 | 28.3 | 130 | 110 | 52 | 80 | 112 | 4-5.5 | 41 | 55 | 20 | 3-Φ5.2 | 3-Φ10.5 | 3-Φ8 |
| DLD2-5 | 30 | 8 | 33.3 | 158 | 147.5 | 62 | 101 | 145 | 6-5.5 | 49 | 64 | 25 | 3-Φ6.2 | 3-Φ12.5 | 3-Φ11 |
| DLD2-10 | 35 | 10 | 38.3 | 190 | 175 | 80 | 120 | 169 | 4-9 | 65 | 75 | 30 | 3-Φ8.2 | 3-Φ16.5 | 3-Φ14 |
| DLD2-16 | 43 | 12 | 46.3 | 230 | 215 | 100 | 158 | 213 | 4-9 | 83 | 90 | 40 | 3-Φ10.2 | 3-Φ21 | 3-Φ18 |
| Size | M | H | H1 | H2 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | U | C | N | b 1 | δ |
| DLD2-0.6 | M4 | 23.5 | 3.2 | 3.2 | 27.3 | 32.3 | 47.3 | 52.3 | 22 | 20 | 14 | 20 | 35.5 | 33 | 3-M4 | 4 | 0.3 |
| DLD2-1.2 | M6 | 27 | 3.5 | 3.5 | 32 | 37.2 | 52.2 | 62.2 | 24 | 20 | 22 | 25 | 42 | 37 | 3-M4 | 5 | 0.3 |
| DLD2-2.5 | M6 | 31.5 | 5 | 5 | 38.7 | 48.7 | 63.7 | 78.7 | 28.5 | 25 | 25 | 30 | 51.5 | 48 | 3-M4 | 6 | 0.4 |
| DLD2-5 | M8 | 36 | 4.2 | 4.2 | 44.8 | 54.8 | 74.8 | 94.8 | 33.5 | 30 | 36 | 40 | 57 | 54 | 3-M5 | 8 | 0.4 |
| DLD2-10 | M8 | 38 | 5 | 5 | 47.6 | 57.6 | 85.6 | 106.6 | 34.5 | 38 | 35 | 49 | 71 | 66 | 3-M5 | 8 | 0.5 |
| DLD2-16 | M8 | 44 | 6 | 6 | 55.7 | 64.7 | 99.7 | 123.7 | 40 | 45 | 40 | 59 | 85 | 80 | 3-M5 | 10 | 0.5 |
Function:
electromagnetic clutch
electromagnetic industrial clutch
Trading information
Minimum order size: 10 pcs
